- Specifications
- Configuration Table

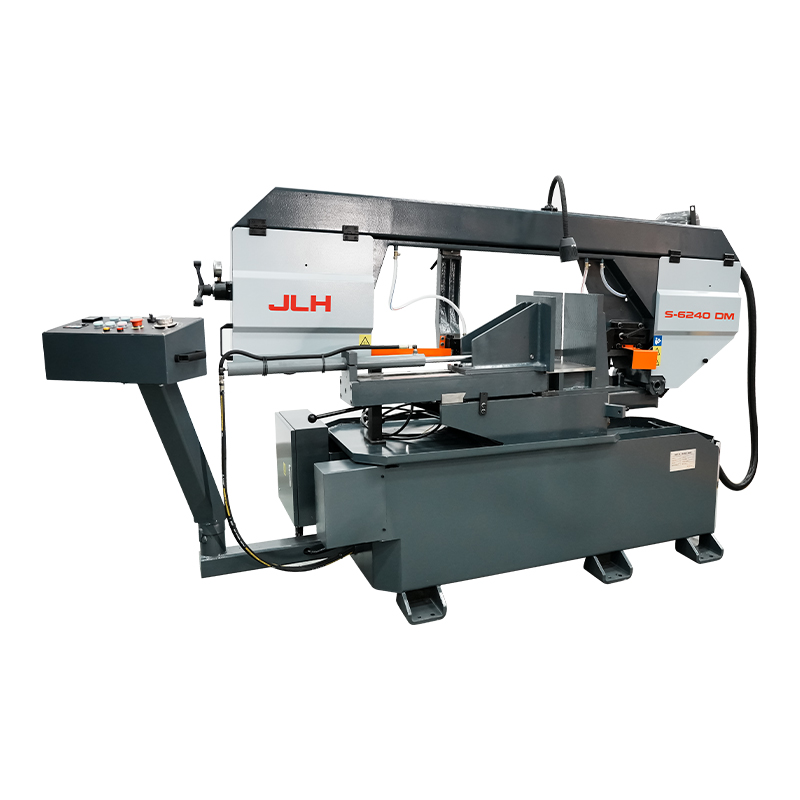

| Specifications | S-6240DM |
Cutting range 90° round | φ420mm /φ16.5in |
Cutting range 90° flat (W x H) | 610*420mm 24*16.5in |
| Cutting range 45° round | φ400mm /φ15.7in |
| Cutting range 45° flat (W x H) | 400*400mm 15.7*15.7in |
| Cutting range 60° round | φ280mm /φ11in |
| Cutting range 60° flat (W x H) | 280*280mm 11*11in |
| Smallest size to be cut | 10*10mm 0.4*0.4in |
| Clamping range | 0-610mm/0-24in |
| Shortest length of cut-off piece | 20mm/0.8in |
| Shortest remnant length individual cut | 50mm/2in |
| Length | 1780mm/70.1in |
| Width incl. chip conveyor | 3060mm/120.5in |
| Height | 1700mm/66.9in |
Material support height | 905mm/35.6n |
| Total weight | ≈1210KG/2667lb |
| Total connected load | 4kw/5.3hp |

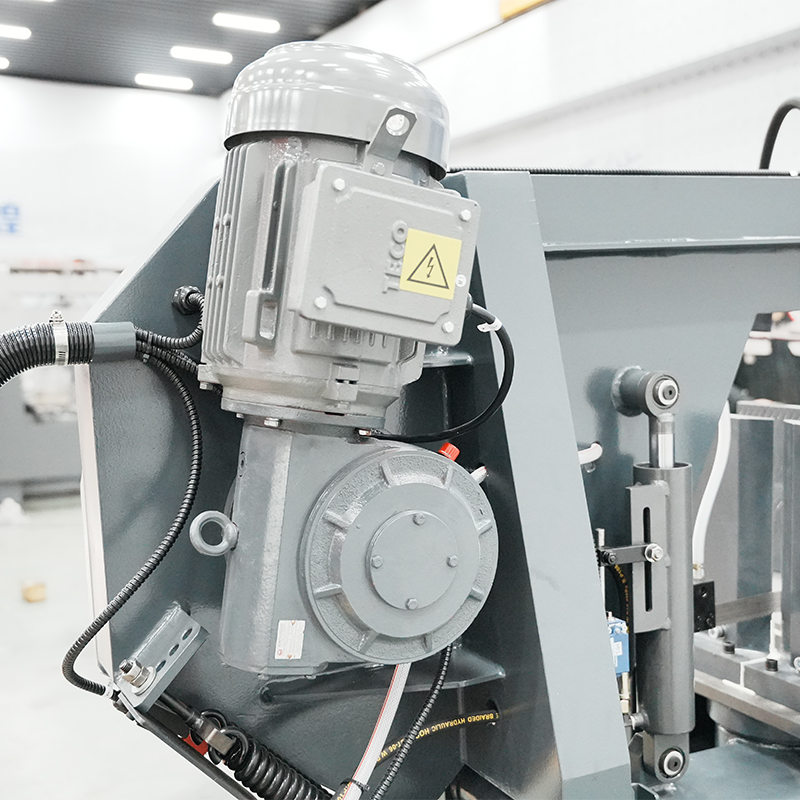

| Power of saw motor | 3kw/4hp |
| Hydraulic motor | 0.75kw/1hp |
| Cutting speed infinitely variable with | 20-80m/min 65.6-262.4ft/min |
| Saw feed speed | 1 - 300 mm/min 0.04-11.8In/min |
| Dimensions of saw blade | 5200*34*1.1mm 204.7 * 1.3* 0.04in |
| Functional description | S-6240DM |
CE standard safety protection | ● |
| Double valve feed control | ○ |
| Single valve feed control | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
LED working light | ● |
| Laser line projection | ○ |
Blade breakage detection | ● |
| HMI+Buttons | × |
| Inverter | ● |
| Deviation detector | × |
| Automatic Angle sawing setting | × |

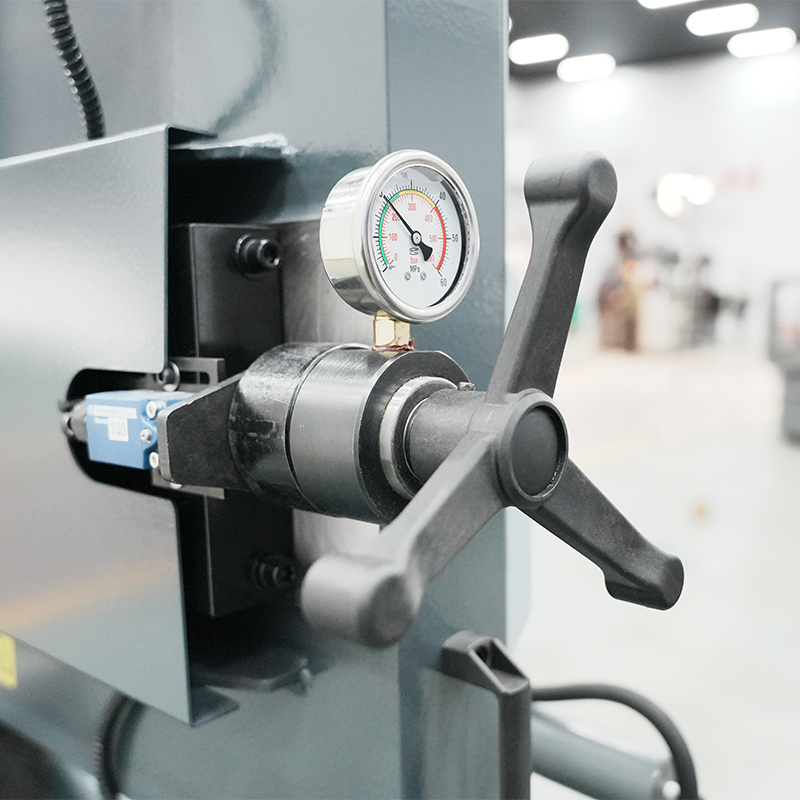

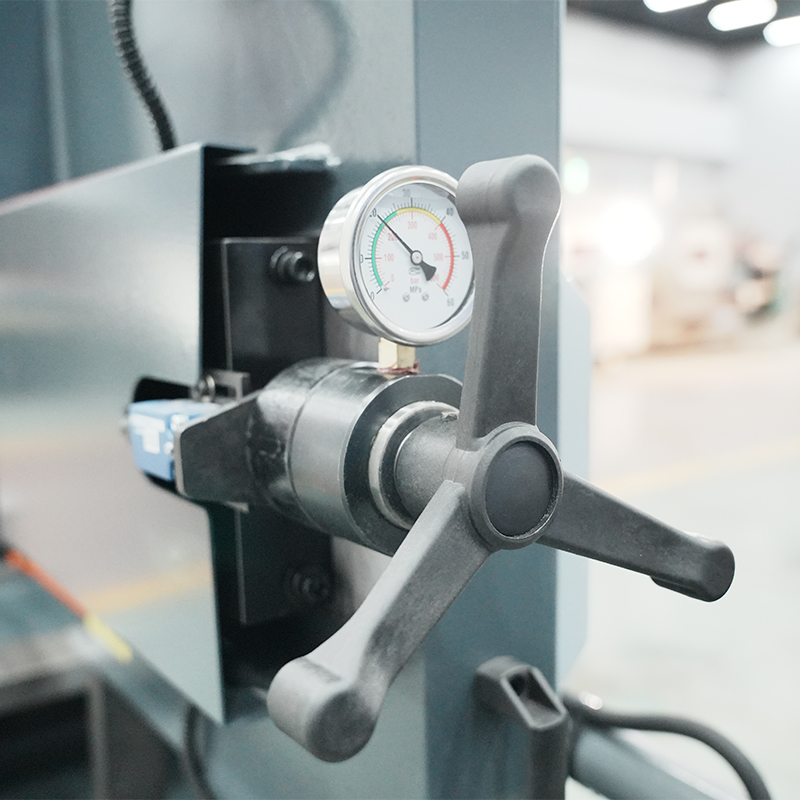

| Vise pressure regulator | ○ |

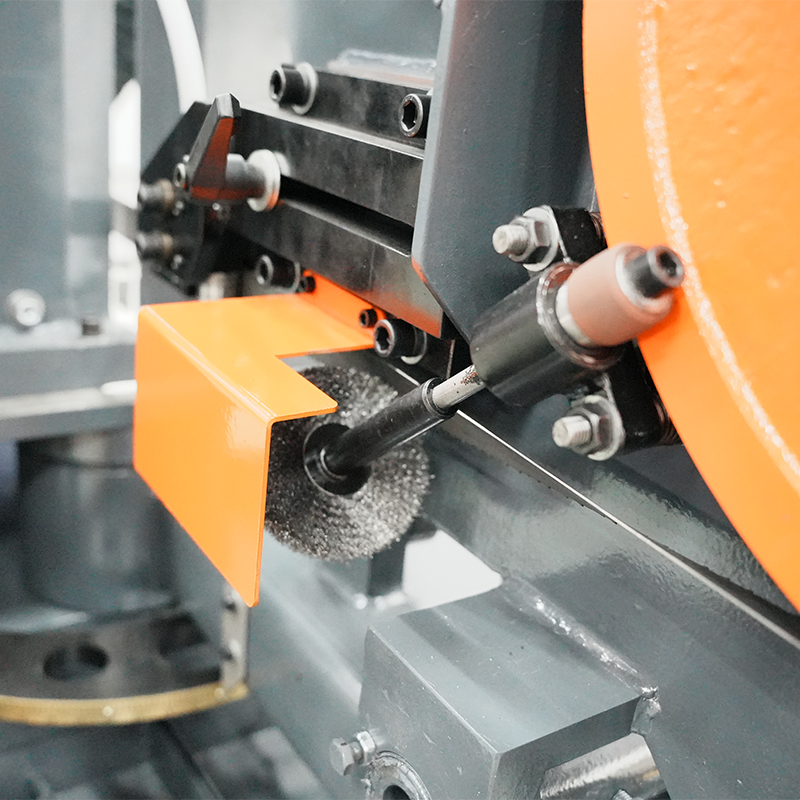

| Motorized chip brush | ● |
| Top clamp | ○ |
| Mist Spray device (1 L) | ○ |
| Hydraulic cooling fan | × |
| Hydraulic feeding | × |
| Servo feeding | × |
| Single Vise Clamping | ● |
| Manual movable Guide arm | ● |
| Tool box (wire brush, levelling pads, spare paint) | × |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
