- Specifications
- Configuration Table

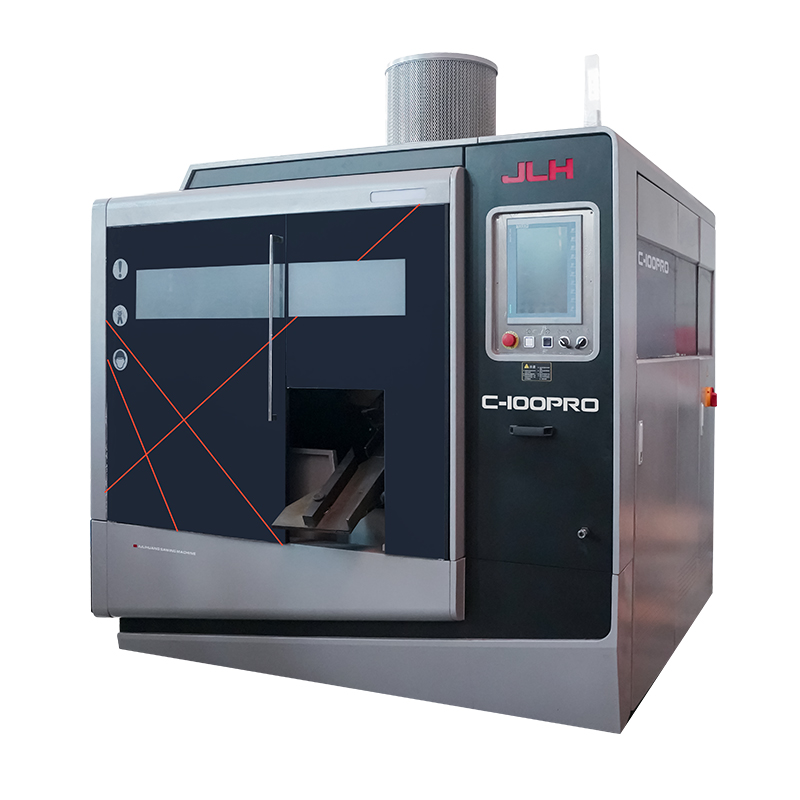

| Specifications | C-100PRO |
Cutting range round | φ20-φ100mm φ0.78-φ3.9in |
Cutting range square (W x H) | 20mm*70mm 0.78in*2.75in |
| Shortest length of cut-off piece | 5mm /0.2in |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 65mm+a/2.55in+a |
Shortest remnant length individual cut | 30mm+a/1.18in+a |
| Length | 23000mm/90.55in |
| Width incl. chip conveyor | 2260mm88.97in |
| Height | 2210mm/87in |
Material support height | 925mm/36.4in |
| Total weight | ≈3950KG/8690lb |
| Total connected load | 26KW/34.6hp |
| Power of saw motor | 18.5kw/24.6hp |
| Hydraulic motor | 2.2kw/3hp |
| Cutting speed infinitely variable with | 30r-160r/min |
| Saw feed speed | 0.3-30mm/s 0.011-1.2in/s |
| Rapid motion | 150mm/s 5.9in/s |
| Automatic material feed length, single stroke | 800mm 31.49in |
| Automatic material feed length, multiple stroke | 9999mm /393.66in |
| Saw blade diameter | φ360mm/φ14.17in |
| Saw blade bores | φ40/φ1.57in |
| Saw blade thickness | 2.25mm*2.6mm 0.09in*0.1in |
| Functional description | C-100PRO |
CE standard fully enclosed protection | ● |
| 45 degree servo feed | ● |
| JLH-EHA | ○ |
| Saw Master | ○ |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |

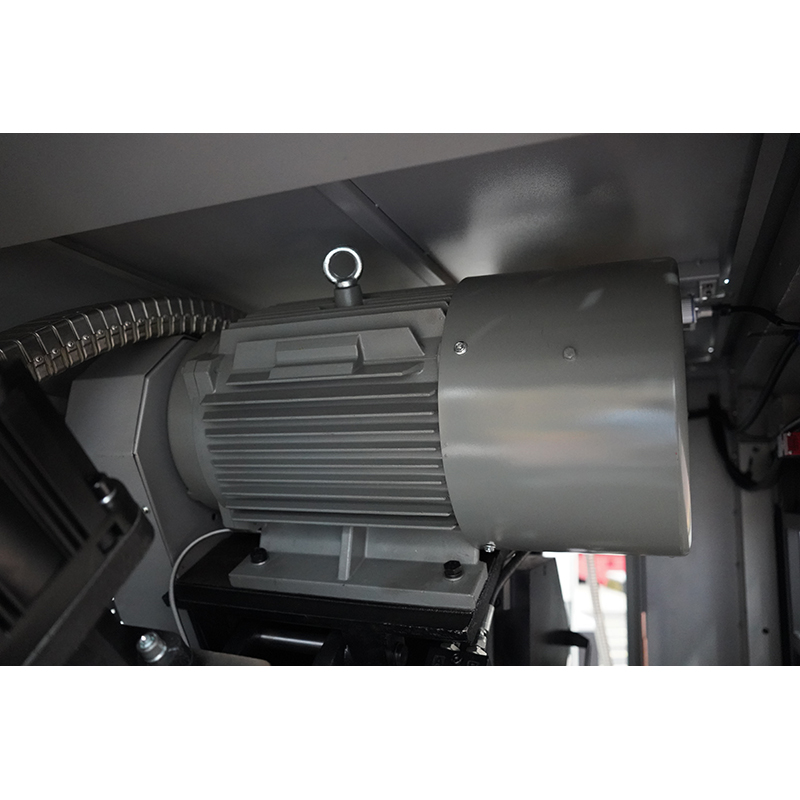

Main drive permanent magnet motor | ● |
| HMI+Buttons | ● |

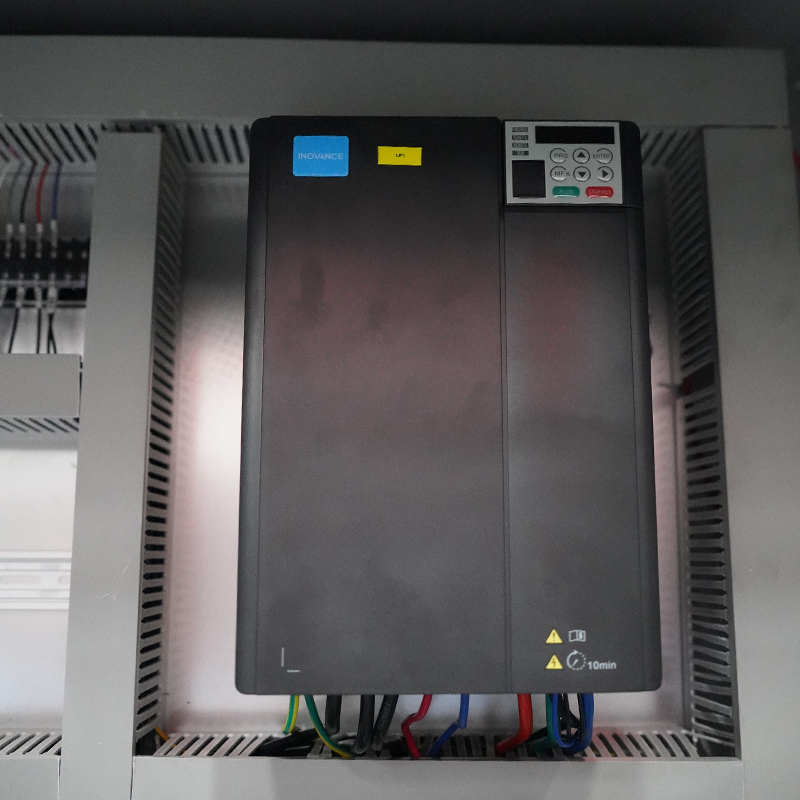

| Inverter | ● |
| Mistspray system (2L) | ● |
| Dust collection device | ● |
| Cutting pipe blast device | ● |

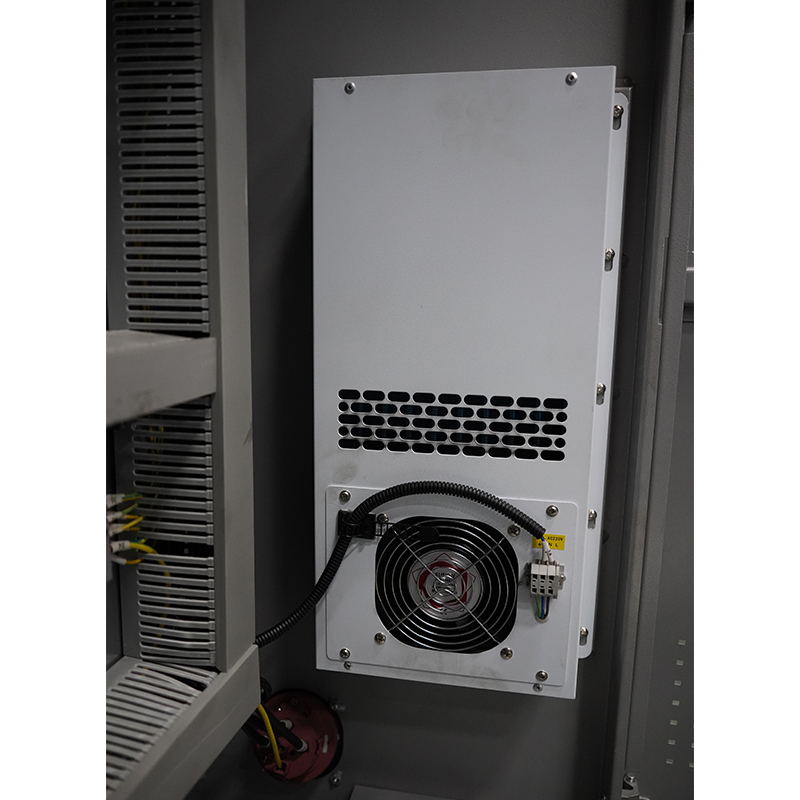

Cabinet air conditioner | ● |

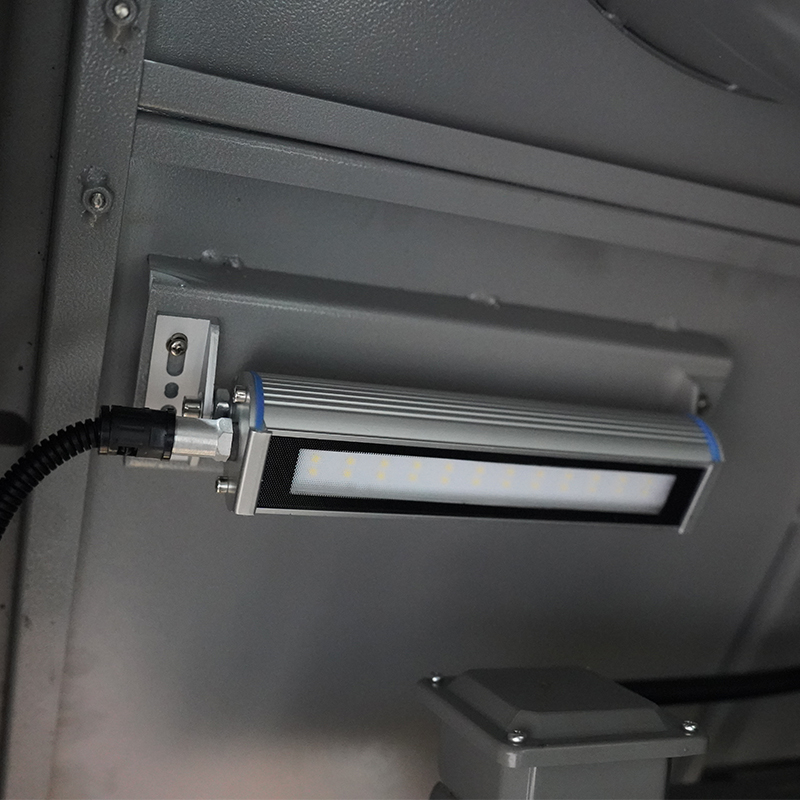

| LED working light | ● |

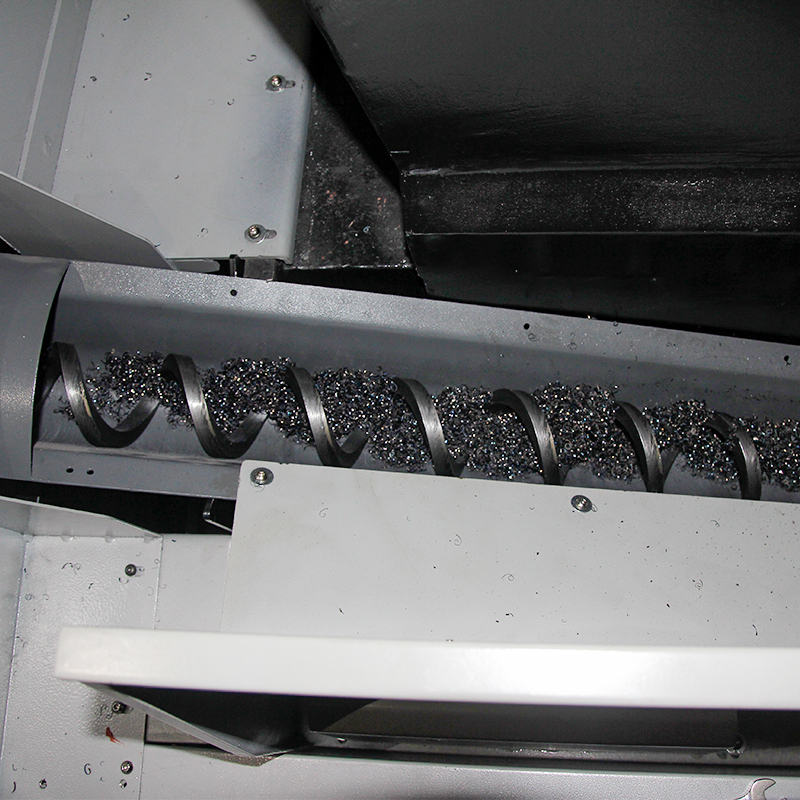

| Automatic chip conveyor (spiral) | ● |
| Vise pressure regulator | ● |

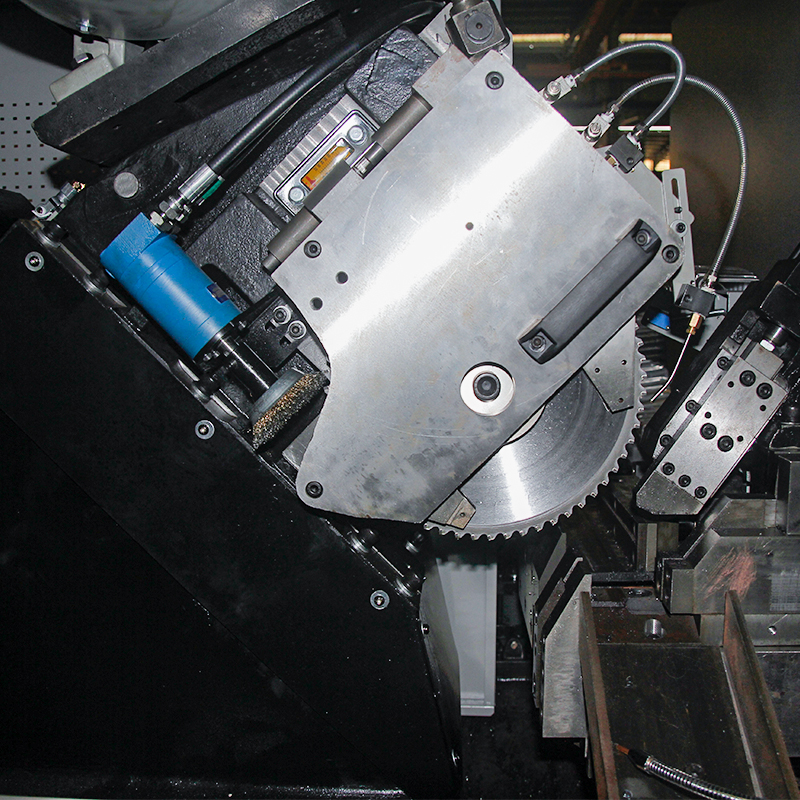

| Motorized chip brush | ● |
| Top clamp | ● |
| Hydraulic cooling fan | ● |

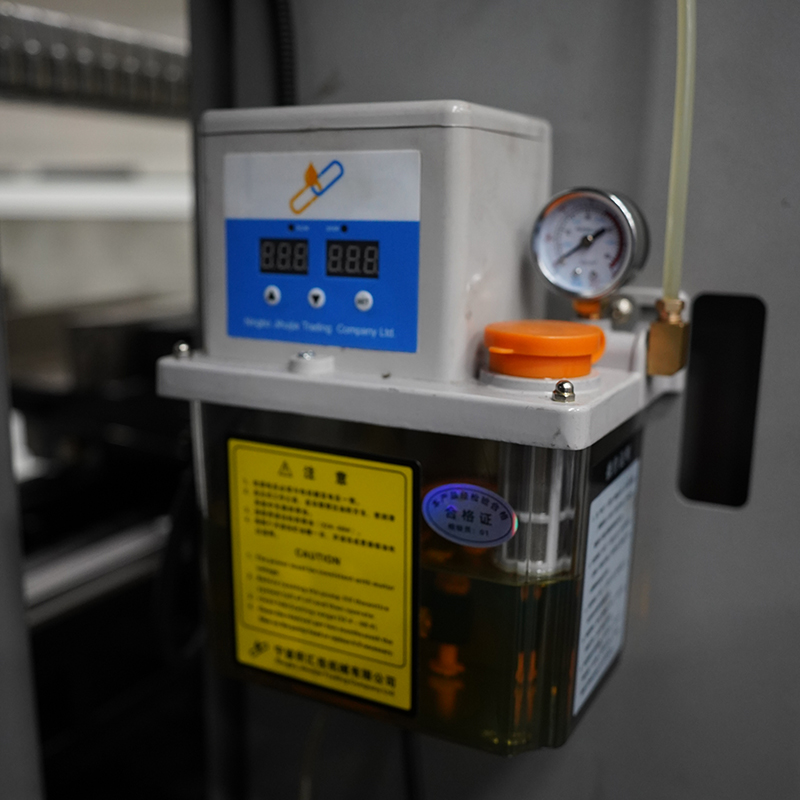

| Auto Lubrication device | ● |
| Roller type work table | × |
| Simple Roller table | ● |

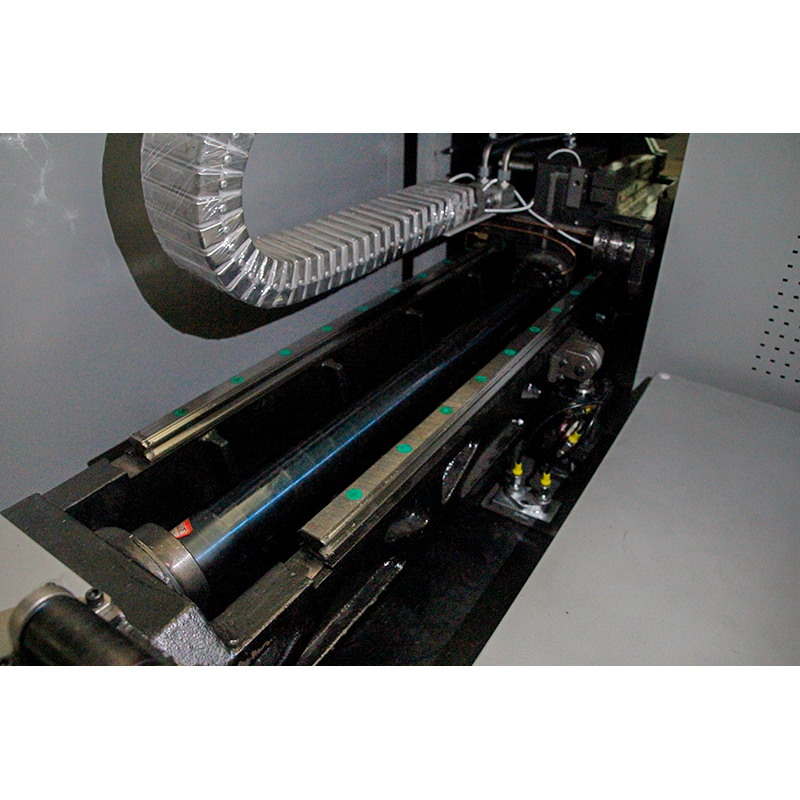

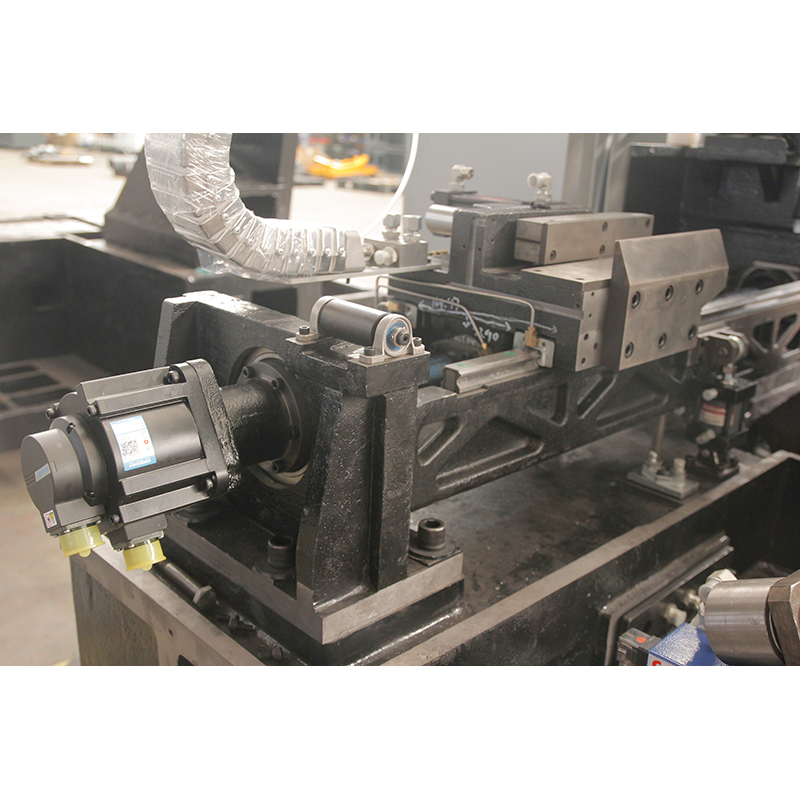

| 0.8M Servo Feed | ● |
| 1.5M power output material table | ○ |
| 2M Servo Power output material table | ○ |
| Third vise | ○ |
| 5,5m inclined powered magazine (rectangular material) | ○ |
| 5,5m inclined powered magazine (round material) | ○ |
| 5,5m belt infeed magazine (round material) | ○ |
| Sawdust collection Cart 70 (L) | ● |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| Circular Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
