- Specifications
- Configuration Table
| Specifications | H-5033TEC |
Cutting range round | φ330mm /φ13in |
Cutting range square (W x H) | 500*330mm 19.7*13in |
| Smallest size to be cut | 10*10mm 0.4*0.4in |
| Clamping range | 0-500mm/0-19.7in |
| Length | 1350mm/53.2in |
| Width incl. chip conveyor | 2710mm/106.7in |
| Height | 1760mm/69.3in |
Material support height | 750mm/29.5in |
| Total weight | ≈1600KG/3527lb |
| Total connected load | 6.2kw/8.27hp |
| Power of saw motor | 5kw/6.66hp |
| Hydraulic motor | 0.75kw/1hp |
| Cutting speed infinitely variable with | 20-80m/min 65.6-262.4ft/min |
| Saw feed speed | 1 - 300 mm/min 0.04-11.8In/min |
| Dimensions of saw blade | 4420*34*1.1mm 174 *1.3*0.04in |
| Functional description | H-5033TEC |
| Saw Master | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
Permanent Magnetic synch. Motor | ● |
Sawbow anti-collision detection | ● |
LED working light | ● |
Laser line projection | ○ |
Blade breakage detection | ● |
Sawing Depth Control | ○ |

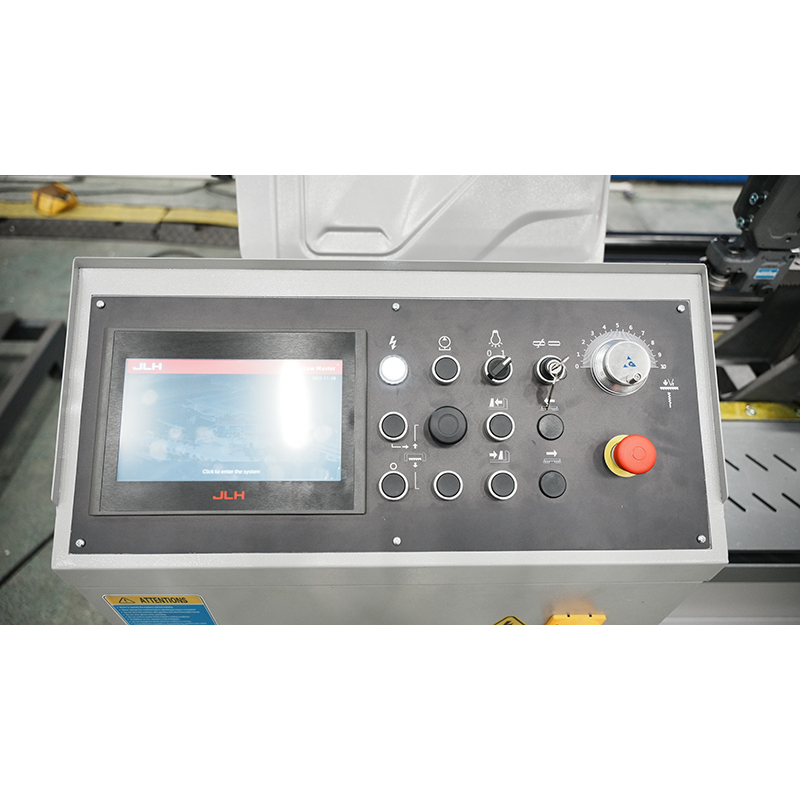

| HMI+Buttons | ● |
| Inverter | ● |
| Deviation detector | ○ |
| Hydraulic Blade tension | ● |
| Vise pressure differential valves | ● |
| Automatic chip conveyor (spiral) | ● |
| Hydraulic blade guide clamping | ○ |
| Vise pressure regulator | ● |
| Motorized chip brush | ● |
| Top clamp | ○ |
| Hydraulic cooling fan | ● |
| Main drive precision gear reducer | ● |
| Split Vise clamping | ● |
| Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
