- Specifications
- Configuration Table

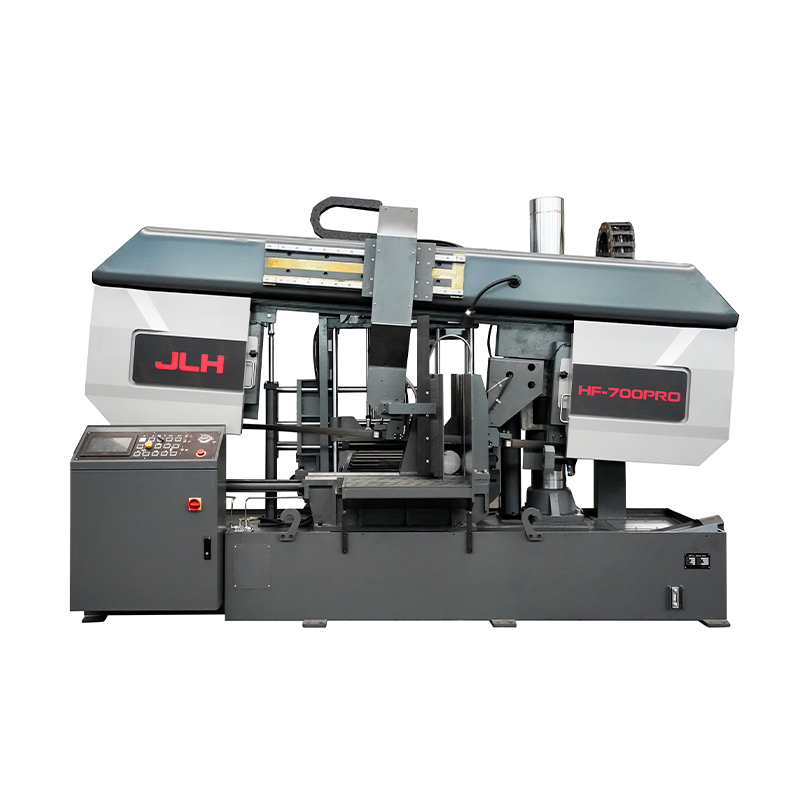

| Specifications | HF-700PRO |
Cutting range round | φ660mm /φ52.8in |
Cutting range square (W x H) | 700*660mm 27.5*52.8in |
| Smallest size to be cut | 30*30mm 1.2*1.2in |
| Clamping range | 20-700mm 0.8-27.5in |
| Bundle cutting range (Min.W x H - Max. W x H ) | 30 * 30-700 * 660mm 1.2*1.2-27.5*52.8in |
| Shortest length of cut-off piece | 20mm /0.8in |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 400mm /16in |
Shortest remnant length individual cut | 20mm /0.8in |
| Length | 3150mm124in |
| Width incl. chip conveyor | 4300mm/170in |
| Height | 3080mm/121.3in |
Material support height | 895mm/35.2in |
| Total weight | ≈6400KG/14109lb |
| Total connected load | 14kw/18.6hp |
| Power of saw motor | 7.5kw/10hp |
| Hydraulic motor | 2.2kw/1hp |
| Cutting speed infinitely variable with | 20-90m/min 65.6-295.2ft/min |
| Saw feed speed | 1 - 300 mm/min 0.04-11.8In/min |
| Automatic material feed length, single stroke | 1000mm /39.4in |
| Automatic material feed length, multiple stroke | 9999mm /393.66in |
| Dimensions of saw blade | 8100*54*1.6mm 318.9 * 2.1 * 0.06in |
| Functional description | HF-700PRO |
CE safety protection | ● |
| JLH-EHA | ● |
| Saw Master | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
Permanent Magnetic synch. Motor | ● |
Sawbow anti-collision detection | ● |
LED working light | ● |
Laser line projection | ○ |
Blade breakage detection | ● |
Sawing Depth Control | ● |

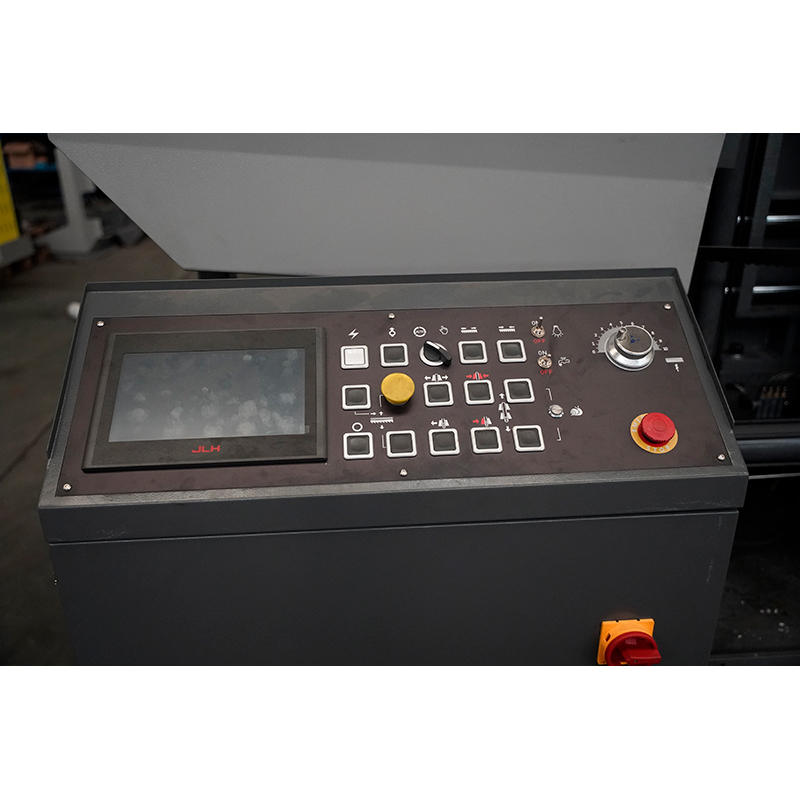

| HMI+Buttons | ● |
| Inverter | ● |
| Deviation detector | ● |
| Hydraulic Blade tension | ● |
| Vise pressure differential valves | ○ |
| Automatic chip conveyor (spiral) | ● |
| Hydraulic blade guide clamping | ● |
| Vise pressure regulator | ● |
| Motorized chip brush | ● |
| Top clamp | ● |
| Hydraulic cooling fan | ● |
| Auto Lubrication device | ● |
| Roller type work table | ● |
| Hydraulic driven | ● |
| Servo driven | ○ |
| Main drive precision gear reducer | ● |
| Split Vise clamping | ● |
| Hydraulic movable Guide arm | ● |
| Chip collection box (movable) 70 (L) | ● |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
