- Specifications
- Configuration Table

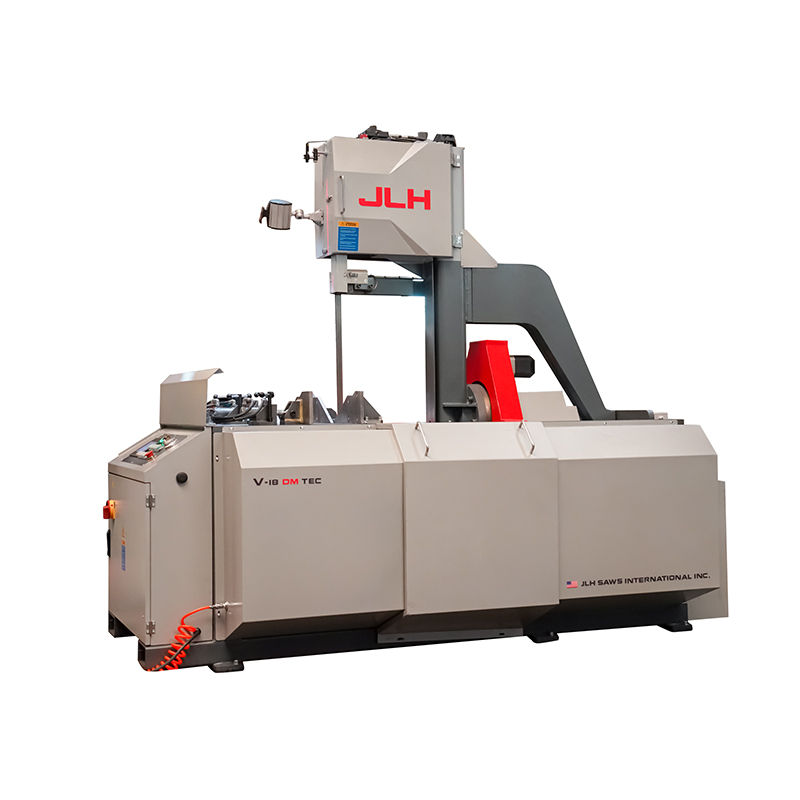

| Specifications | V-18 DM TEC |
Cutting Range 90° Round | φ445mm/17.5in |
Cutting Range 90° Flat (W x H) | 445*710mm 17.5*27.95in |
| Cutting Range 45° Round | φ445mm/17.5in |
| Cutting Range 45° Flat (W x H) | 445*437mm 17.5*17.2in |
| Cutting Range 60° Round | φ265mm/10.43in |
| Cutting Range 60° Flat (W x H) | 445*265m 17.5*10.43in |
| Smallest Size To Be Cut | 10*10m 0.39*0.39in |
| Clamping Range | 10-445mm/0.39-17.5in |
Shortest Length Of Cut-Off Piece | 500mm |
| Length | 3060mm/120.5in |
| Width incl. chip conveyor | 2620mm/103.1in |
| Height | 2500mm/98.4in |
Material support height | 1020mm/40.15in |
| Total Weight | ≈2200Kg/4840ib |
| Total Connected Load | 5.5KW/7.48hp |
| Power Of Saw Motor | 3KW/4.08hp |
| Hydraulic Motor | 1.5KW/2.04hp |
| Cutting Speed Infinitely Variable With | 20-80m/min 65.6-262.4ft/min |
| Saw Feed Speed | 1 - 300 mm/min 0.04-11.8In/min |
| Rapid Motion | 3000mm/min 118in/min |
| Dimensions of saw blade | 5000*34*1.1mm 196.85*1.34*0.043in |
| Functional description | V-18 DM TEC |
| CE Standard Safety Protection | ● |

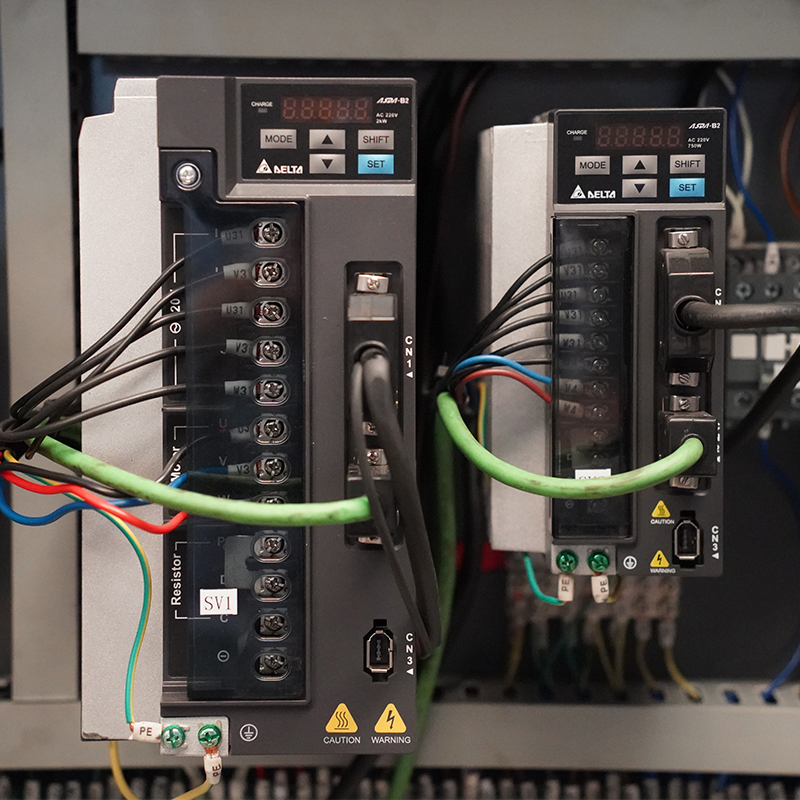

| Servo Feeding | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |

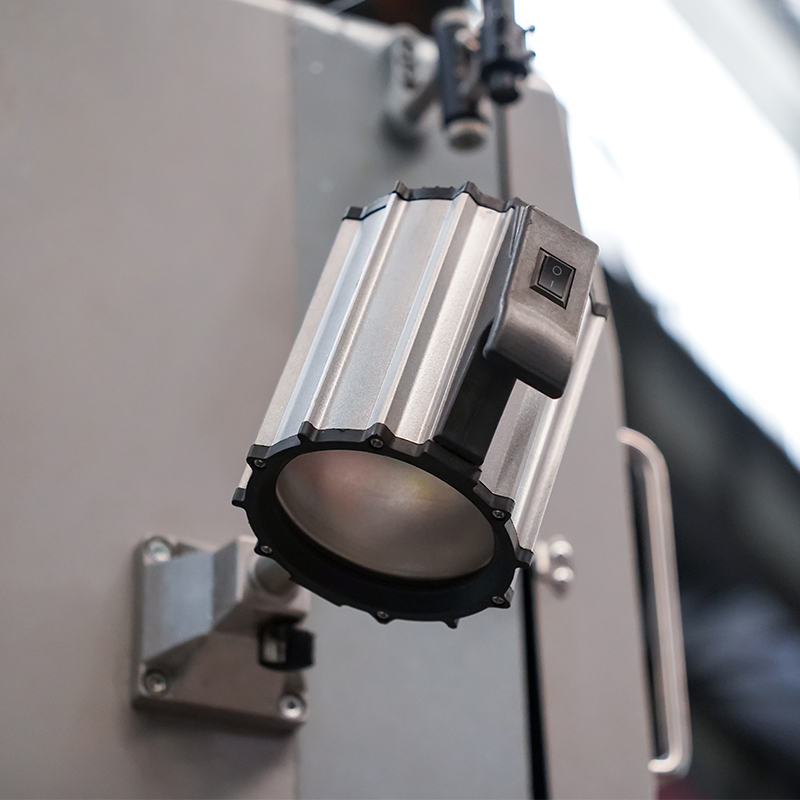

| LED Working Light | ● |
Laser Line Projection | ● |
Blade Breakage Detection | ● |
Sawing Depth Control | ● |

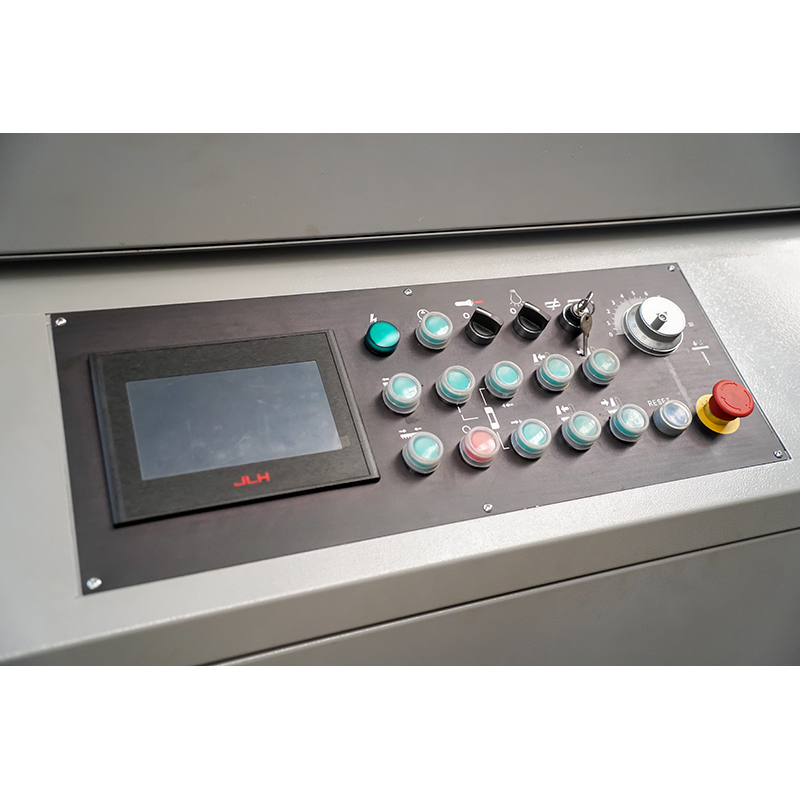

| HMI+Buttons | ● |

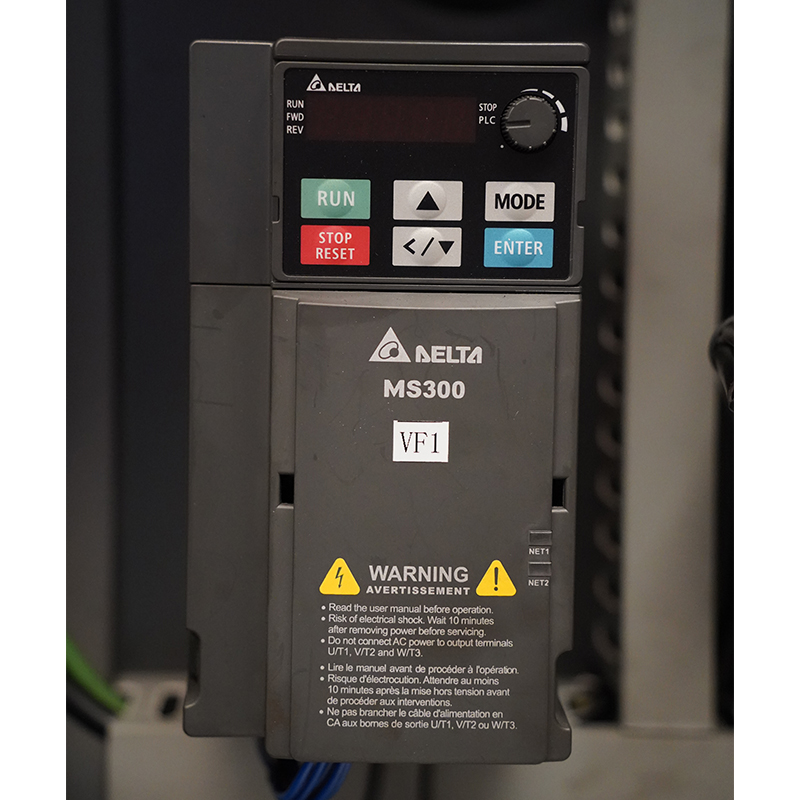

| Inverter | ● |
| Automatic Angle Sawing Setting (Servo) | ● |
| Hydraulic Blade Tension | ● |

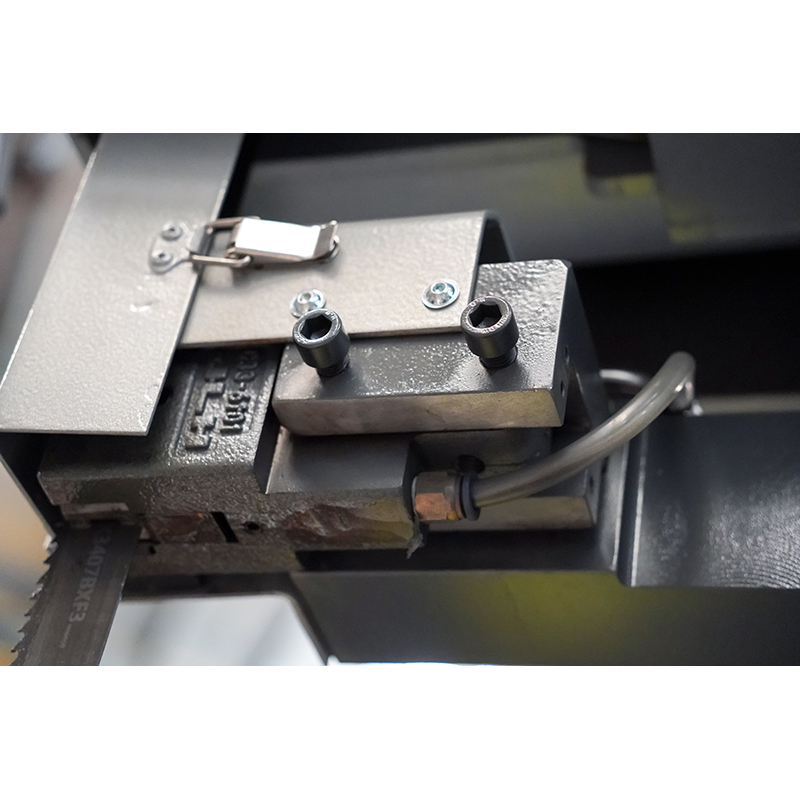

| Hydraulic Blade Guide Clamping | ● |
| Hydraulic Cooling Fan | ● |

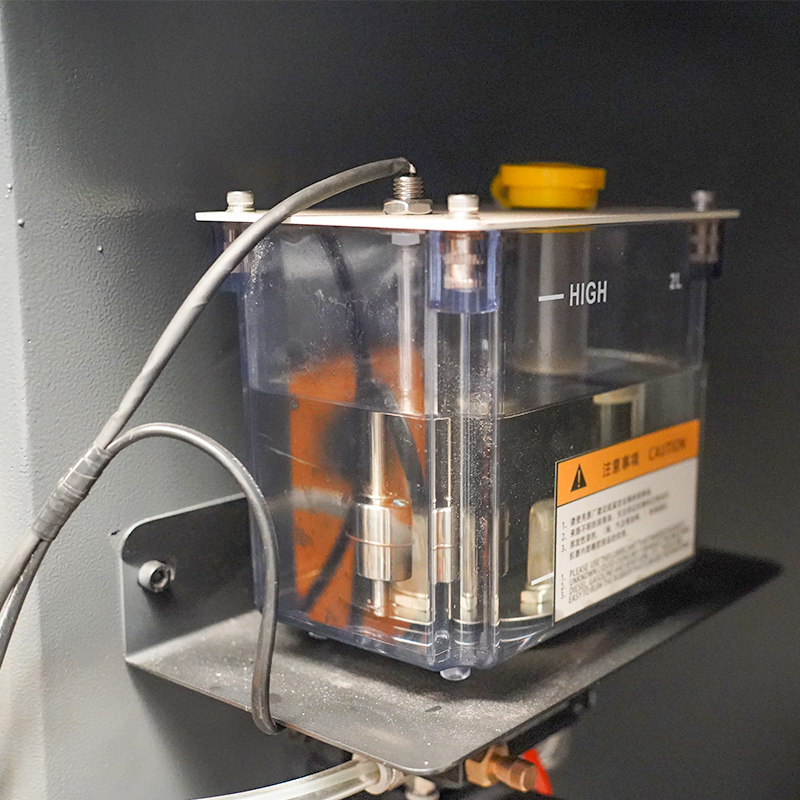

| Auto Lubrication Device | ● |
| Simple Roller Table | ○ |
| Servo Feed | × |

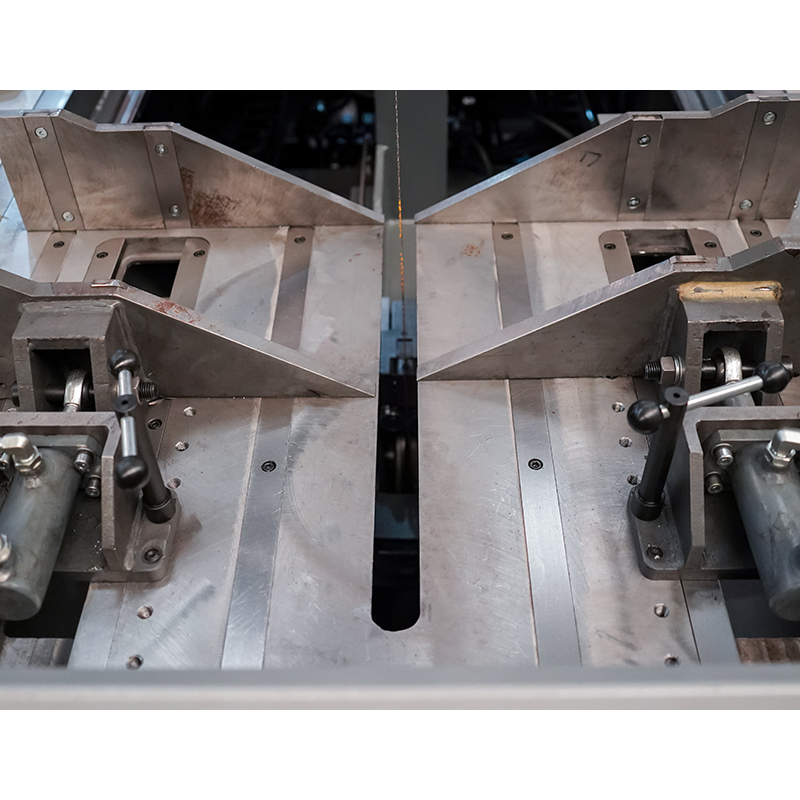

| Split Vise clamping | ● |
| Hydraulic Movable Guide Arm | ● |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
