- Specifications
- Configuration Table

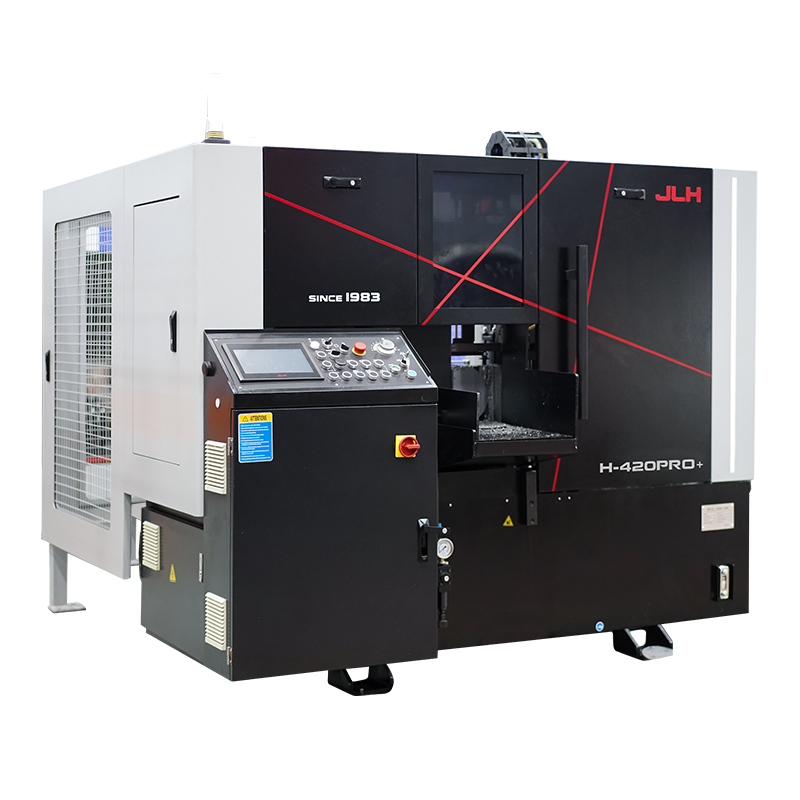

| Specifications | H-420PRO+ |
Cutting range round | φ420mm /φ16.5in |
Cutting range square (W x H) | 420*420mm 16.5*16.5in |
| Smallest size to be cut | 10*10mm 0.4*0.4in |
| Clamping range | 0-420mm/0-16.5in |
| Bundle cutting range (Min.W x H - Max. W x H ) | 160 *130-260*160mm 6.3*5.1-10.2*6.3in |
| Shortest length of cut-off piece | 5mm /0.2in |
| Shortest remnant length in automatic operation, possible only if the material has a perfect geometric surface | 190mm /7.48in |
Shortest remnant length individual cut | 10mm /0.4in |
| Length | 2220mm/87.4in |
| Width incl. chip conveyor | 3030mm/119.3in |
| Height | 2250mm/88.6n |
Material support height | 860mm/33.85in |
| Total weight | ≈3000KG/6613lb |
| Total connected load | 11.5kw/15.3hp |
| Power of saw motor | 7.5kw/10hp |
| Hydraulic motor | 1.5kw/2hp |
| Cutting speed infinitely variable with | 20-80m/min 65.6-262.4ft/min |
| Saw feed speed | 1 - 300 mm/min 0.04-11.8In/min |
| Automatic material feed length, single stroke | 500mm /19.69in |
| Automatic material feed length, multiple stroke | 9999mm /393.66in |

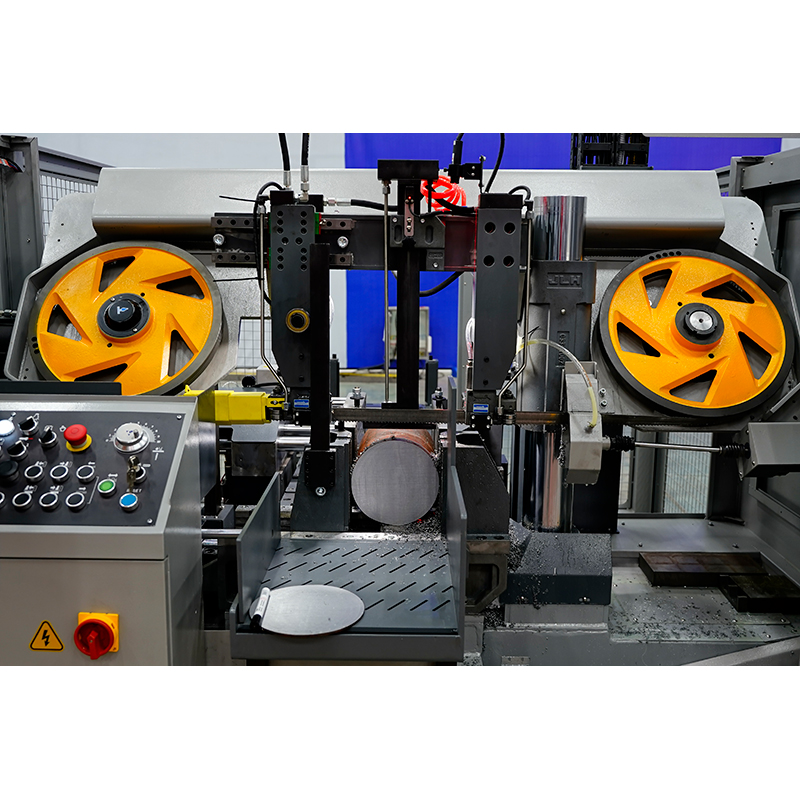

| Dimensions of saw blade | 5150*41*1.3mm 202.76* 1.6 * 0.05in |
| Functional description | H-420PRO+ |

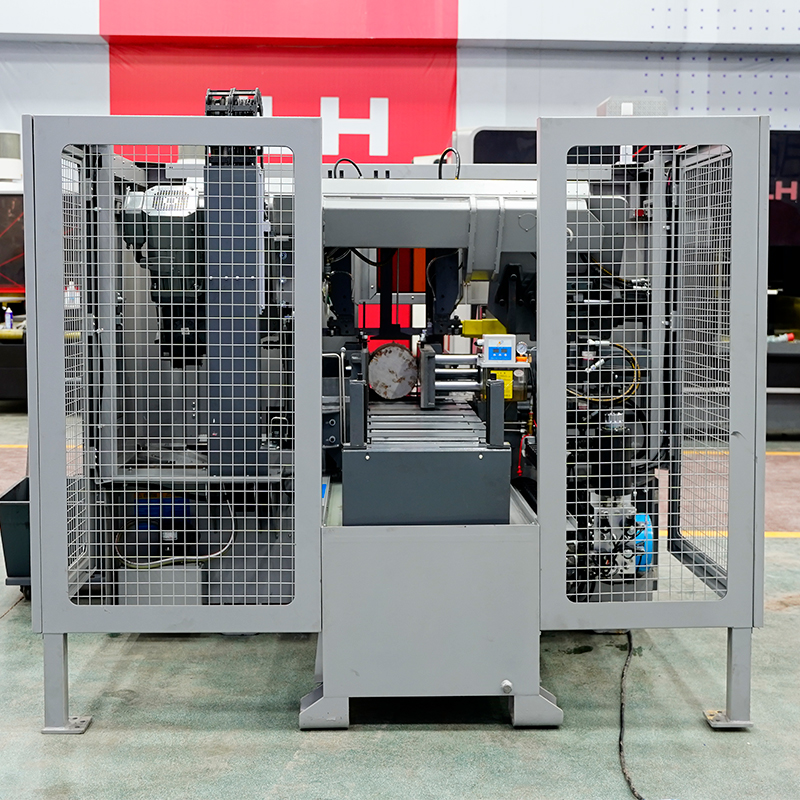

CE standard fully enclosed protection | ● |
| JLH-EHA | ● |
| Saw Master | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
Permanent Magnetic synch. Motor | ● |
Sawbow anti-collision detection | ● |
LED working light | ● |
Laser line projection | ● |
Blade breakage detection | ● |
Sawing Depth Control | ● |

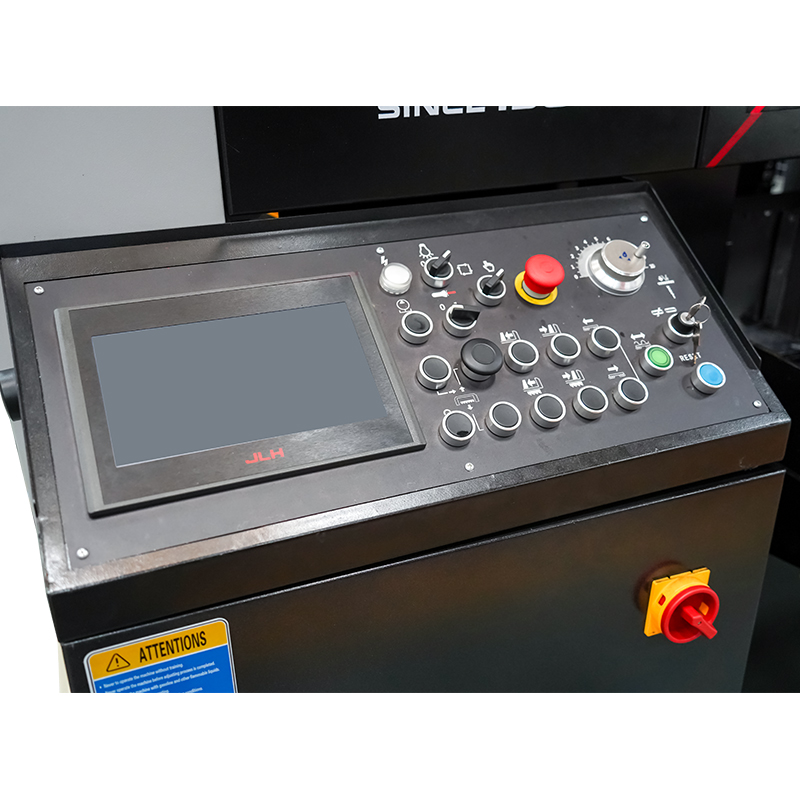

| HMI+Buttons | ● |
| Inverter | ● |
| 0-start (first cut option) | ○ |
| Deviation detector | ● |
| Hydraulic Blade tension | ● |
| Vise pressure differential valves | ● |

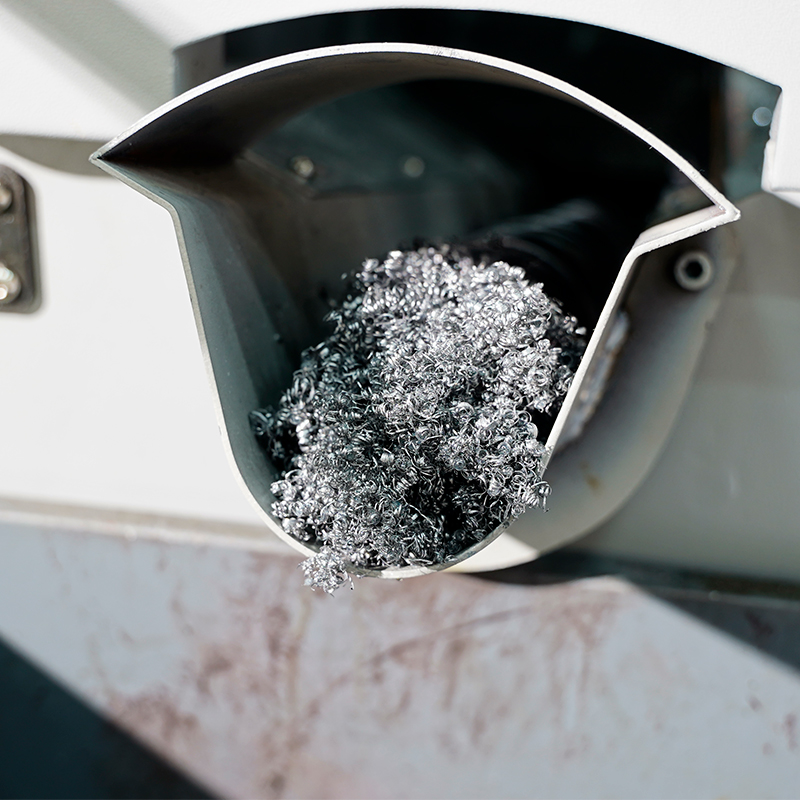

| Automatic chip conveyor (spiral) | ● |
| Automatic chip conveyor (belt) | × |
| Hydraulic blade guide clamping | ● |
| Vise pressure regulator | ● |
| Motorized chip brush | ● |
| Top clamp | ○ |
| Hydraulic cooling fan | ● |

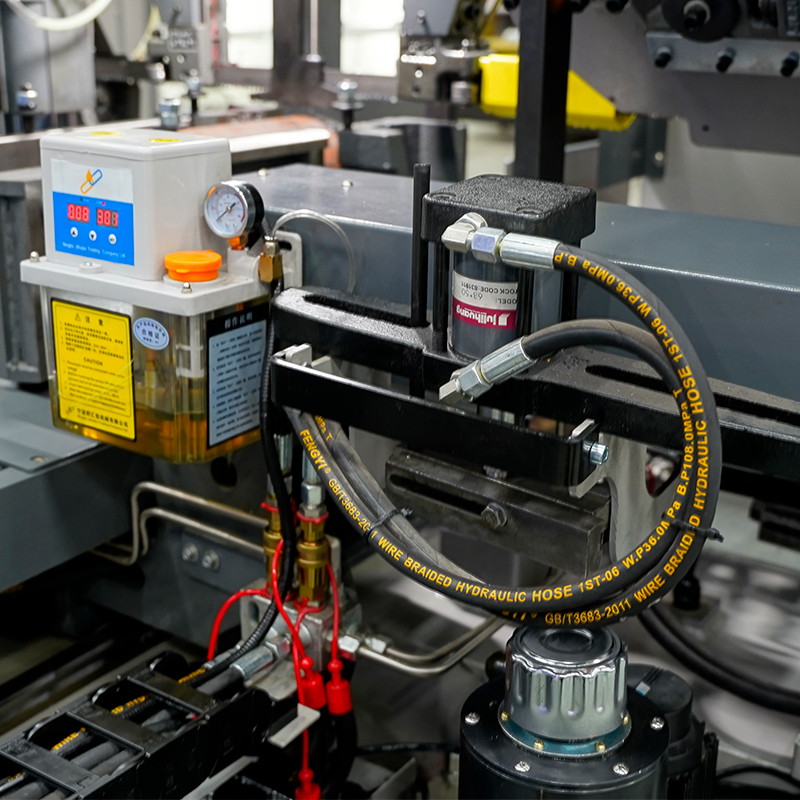

| Auto Lubrication device | ● |
| Roller type work table | ● |
| Hydraulic feeding | ● |
| Servo feeding | ○ |
| Main drive precision gear reducer | ● |
| Single Vise Clamping | × |
| Split Vise clamping | ● |
| Hydraulic movable Guide arm | ● |
| Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
