- Specifications
- Configuration Table

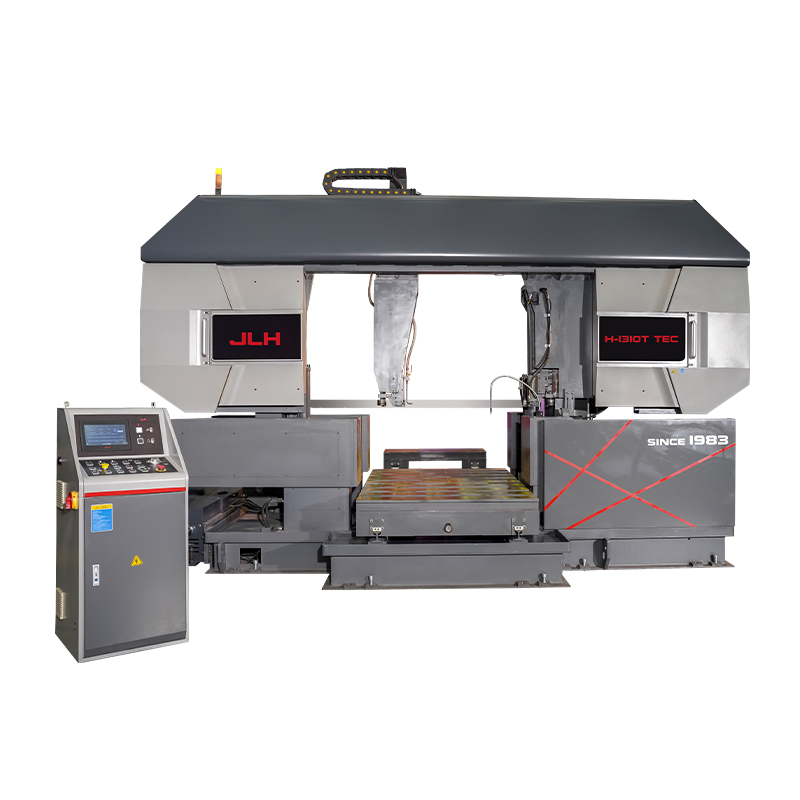

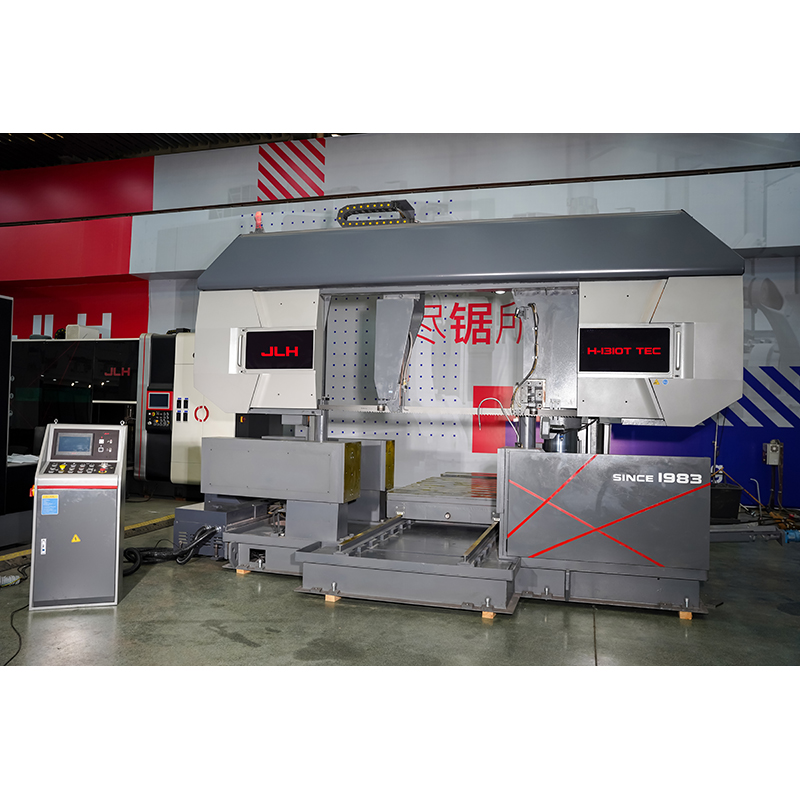

| Specifications | H-1310T TEC |
Cutting range round | φ1000mm /φ39.4in |
Cutting range square (W x H) | 1300*1000m 51.2*39.4in |
| Smallest size to be cut | 600*600m 23.7*23.7in |
| Clamping range | 600-1300mm 23.7-51.2in |
| Feeding platform length | 2000mm /78.74in |
| Feeding platform travel distance | 2000mm /78.74in |
| Length | 5270mm/207.48in |
Width incl. chip conveyor | 5650mm/222.44in |
| Height | 2810mm/110.63in |
Material support height | 623mm/24.53in |
| Total weight | ≈14500KG/31972.5lb |
| Total connected load | 33kw/44hp |
| Power of saw motor | 22kw/30hp |
| Hydraulic motor | 3.75kw/5hp |
| Cutting speed infinitely variable with | 20-80m/min 65.6-262.4ft/min |
| Saw feed speed | 1 - 300 mm/min 0.04-11.8In/min |
| Dimensions of saw blade | 10900*67*1.6mm 429.13 * 2.64* 0.06in |
| Functional description | H-1310T TEC |
| JLH-EHA | ● |
| Saw Master | ● |
| CE Electrical Safety | ● |
UL Electrical Safety | ○ |
Permanent Magnetic synch. Motor | ● |
Sawbow anti-collision detection | ● |
LED working light | ● |
Laser line projection | ● |
Blade breakage detection | ● |
Sawing Depth Control | ● |

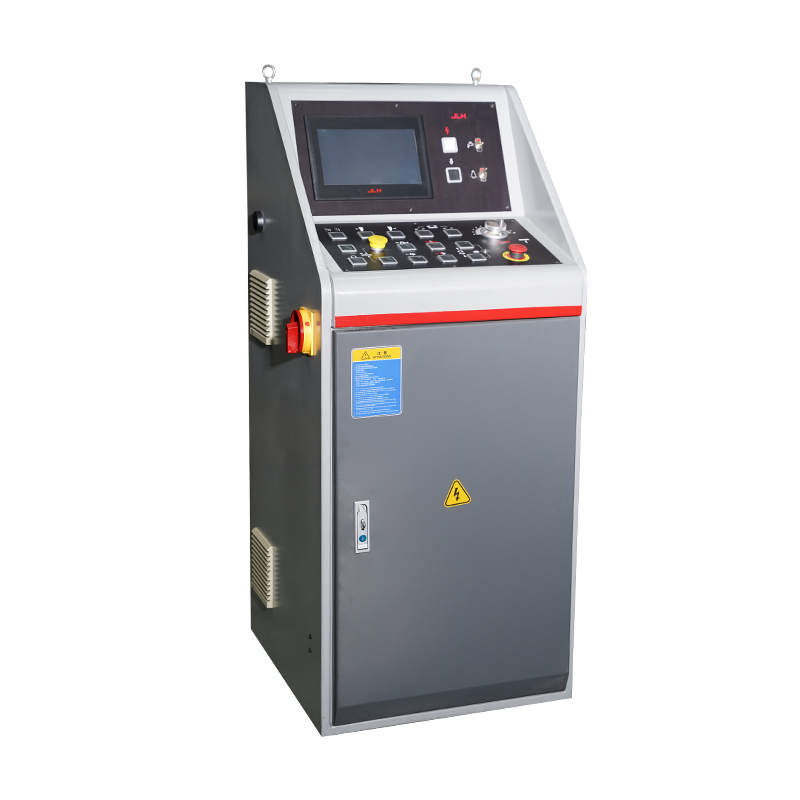

| HMI+Buttons | ● |
| Inverter | ● |
| Deviation detector | ○ |
| Hydraulic Blade tension | ● |
| Automatic chip conveyor (spiral) | ● |
| Hydraulic saw guide clamping | ● |
| Motorized chip brush | ● |
| Hydraulic cooling fan | ● |
| Auto Lubrication device | × |

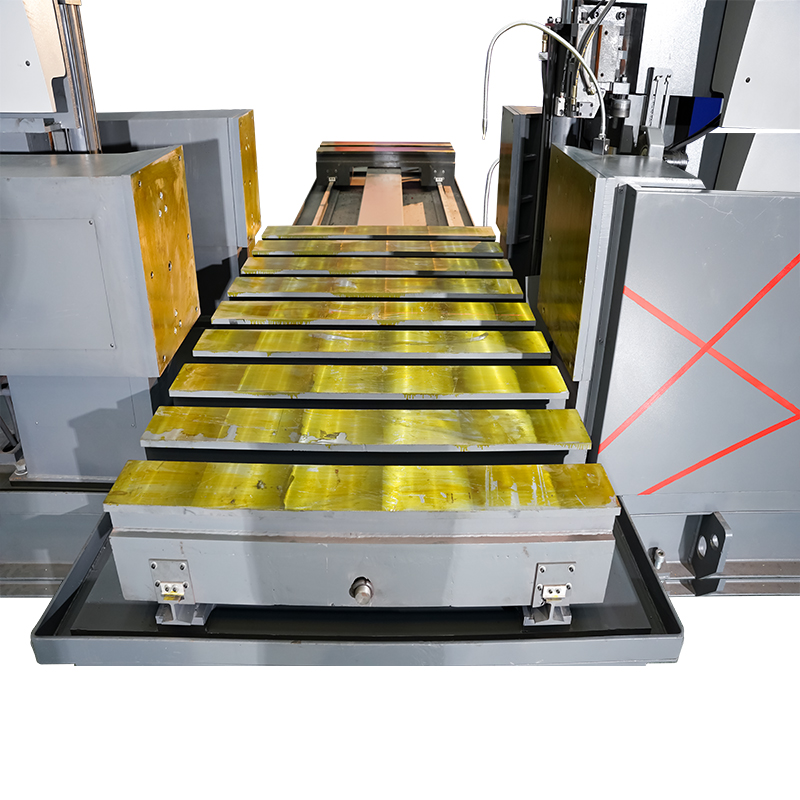

| Hydraulic Table movement | ● |

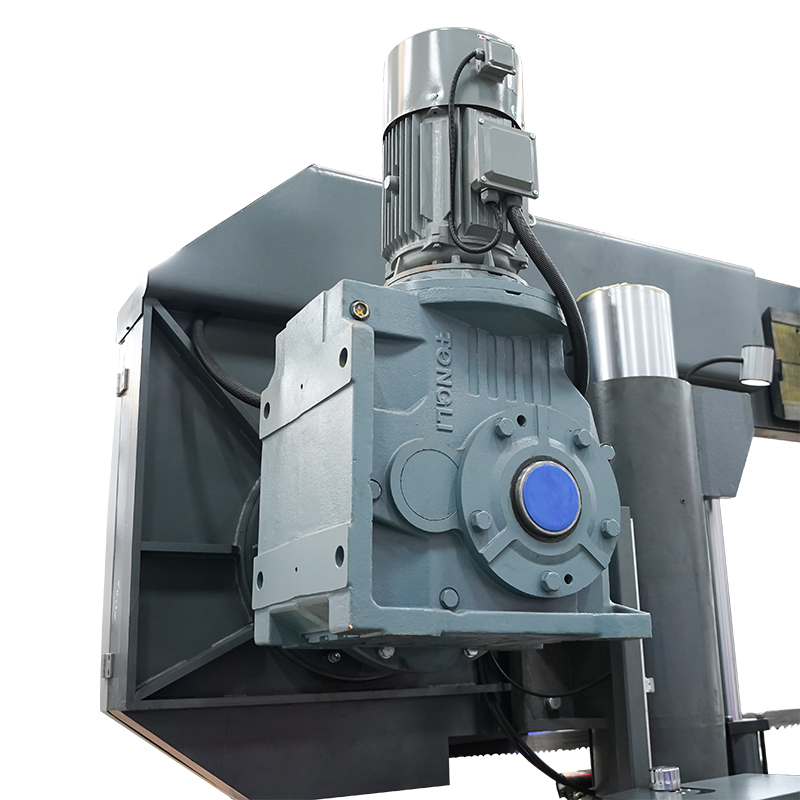

| Main drive precision gear reducer | ● |
| Single Vise Clamping | ● |
| Split Vise clamping | × |

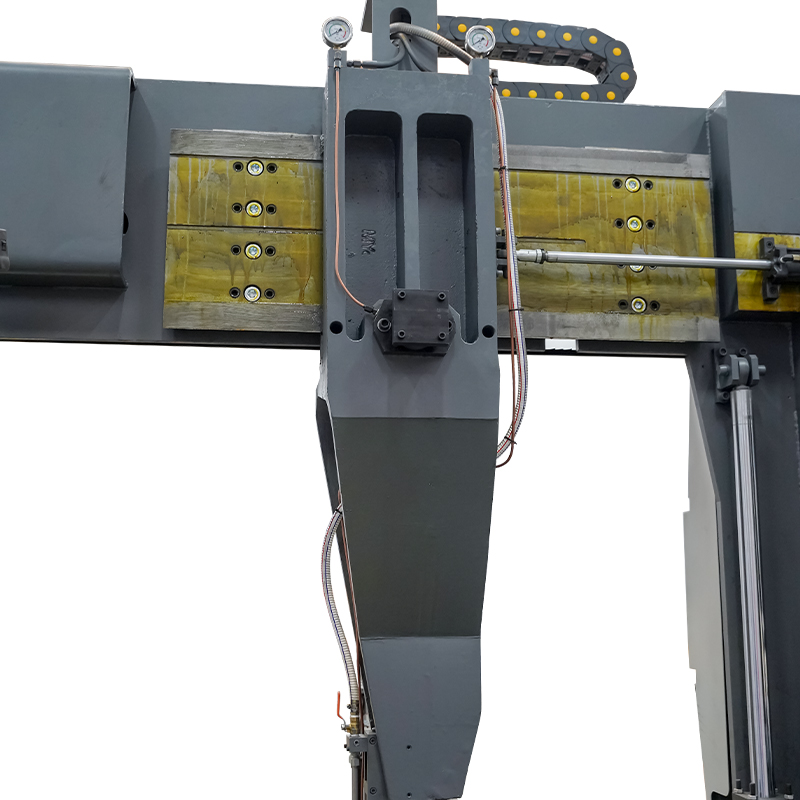

| Hydraulic movable Guide arm | ● |
| Manual movable Guide arm | × |
| Chip collection box 40(L) | ● |
| Chip collection box (movable) 70 (L) | ○ |
| Tool box (wire brush, levelling pads, spare paint) | ● |
| One piece Saw blade | ● |
| Transport underframe for containers | ○ |
| ● : Standard ○ : 0ptional × : Non-optional | |
